Building HIPAA-Compliant Apps on Render

Healthcare applications that handle US Protected Health Information (PHI) must adhere to strict HIPAA compliance requirements to ensure patient data security and privacy.

This guide outlines best practices for developing HIPAA-compliant applications, covering both infrastructure-level security measures provided by Render and application-level implementations that you'll need to consider.

We'll explore key aspects of HIPAA compliance, including user access controls, emergency access procedures, PHI access logging, and data encryption.

Example app

This guide includes examples and code snippets that demonstrate how to implement HIPAA Security Rule requirements in your healthcare applications.

To view a more complete example implementation, see the patient-api project repo:

Open in GitHub

HIPAA Security Rule application checklist

With a HIPAA-enabled workspace, here's a summary of what Render handles for you and what you'll need to implement at the app layer:

For more details on the HIPAA Security Rule, we recommend the HIPAA security series published by HHS.

User access controls & person or entity authentication

HIPAA Security Rule requires that users have unique identification and that data access is restricted to the right users.

Render handles access control at the infrastructure level with role-based access (RBAC) to platform components, but it's also necessary to restrict access on the service level.

In addition to user authentication (which is usually done with either session-based or JWT-based authentication), role-based data access (authorization) is also recommended.

This can be does with simple role check as in the example below. After authenticating the user, we can check if the role permission is sufficient to access the resource.

const user = await getUser(req)

if (user.role !== 'ADMIN' && user.role !== 'BILLING') {
  logger.warn('User is not authorized to access this resource', {
    userId: user.id,
    userRole: user.role,
  })
  throw new AuthorizationError('User is not authorized to access this resource')
}

In our example app, an ADMIN or BILLING user can access all patient records, but a PROVIDER user cannot.

This example illustrates a simple way to implement role based access, but in a production system, we recommend a more robust implementation. Options range from hosted solutions like Permit.io, or library solutions like Auth.js.

Automatic logoff

Automatically terminating user sessions after a set time can be easily done by adjusting the expiration of a JWT token. Review the configuration of your auth provider and set the expiration accordingly. The expiration length is a balance between security (shorter expiration) and better user experience (longer expiration).

The HIPAA Security Rule does not define a specific expiration requirement, so this configuration can be tuned to your specific use case.

Emergency access procedure

In addition to user access controls, HIPAA requires "procedures for obtaining necessary electronic protected health information during an emergency."

In our example app, we satisfy this requirement with the addition of the ADMIN role, which can access all patient records:

const user = await getUser(req)

// check if user is admin
if (user.role !== 'ADMIN') {
  logger.warn('User is not authorized to access this resource', {
    userId: user.id,
    userRole: user.role,
  })
  throw new AuthorizationError('User is not authorized to access this resource')
}

const patients = await patientService.getAllPatients()

PHI access logging

Render provides built-in audit logging and monitoring for platform events, as well as intrusion detection (IDS) to detect unauthorized access and facilitate authorized access audits.

To satisfy HIPAA requirements around ePHI, add application-level logs that record who is accessing what records. For reference, the HIPAA Security Rule states:

Implement hardware, software, and/or procedural mechanisms that record and examine activity in information systems that contain or use electronic protected health information.

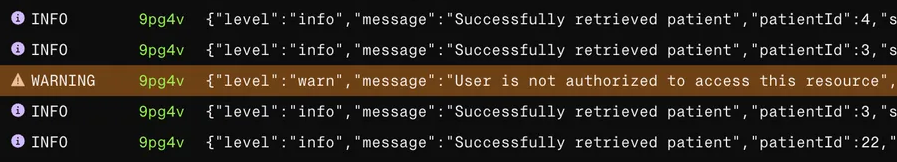

In our example app, we log the userId and role of every record access request, as well as the patientId. In the event of a suspected data breach, this monitoring could be used to analyze the affected data.

Encryption and decryption

Regarding data security, the HIPAA Security Rule states:

Implement technical security measures to guard against unauthorized access to electronic protected health information that is being transmitted over an electronic communications network.

Render-provided infrastructure safeguards

Render provides TLS 1.2+ encryption for all traffic, plus private networking between services, as well as minimum AES-128 encryption for databases, backups, and secrets.

Implementing zero-trust security in your app

We recommend implementing additional data security mechanisms on the app level to produce a "zero-trust" system, where a breach of one component does not allow full access to sensitive data.

The example app includes an encryption function that encrypts the patient's SSN before inserting into the database and decrypts it only upon retrieval.

This means that even if an unauthorized user gains access to the database or the app, they still wouldn't be able to access the encrypted data. You can find the full implementation in the example app repo.

// Methods of class PatientService

public async createPatient(patientData: Omit<Patient, 'id'>): Promise<Patient> {

  // Encrypt sensitive data before inserting into the database.
  const patientEncrypted = this.encryptSSN(patientData)

  return this.prisma.patient.create({
    data: patientEncrypted
  });
}

public async getPatientById(id: number): Promise<Patient> {
  const patient: Patient | null = await this.prisma.patient.findFirst({
    where: { id },
  });

  if (!patient) {
    throw new NotFoundError(`Patient with id ${id} not found`);
  }

  // Decrypt data after database retrieval
  const patientDecrypted = this.decryptSSN(patient, patient.ivKey)

  if (!patientDecrypted) {
    throw new NotFoundError(`Patient with id ${id} not found`);
  }

  return patientDecrypted;
}

Wrapping up

Building HIPAA-compliant applications requires careful attention to security measures at both the infrastructure and application levels. While Render provides robust infrastructure-level security features, you must implement appropriate application-level controls to ensure HIPAA compliance.

By following the best practices outlined in this guide, implementing proper user access controls, maintaining detailed access logs, and utilizing encryption for sensitive data, you can build secure healthcare applications that protect patient information.

Remember that these examples serve as starting points, and production systems should employ more robust implementations based on specific security requirements and threat models. Regular security audits will help maintain the integrity and compliance of your healthcare applications.
